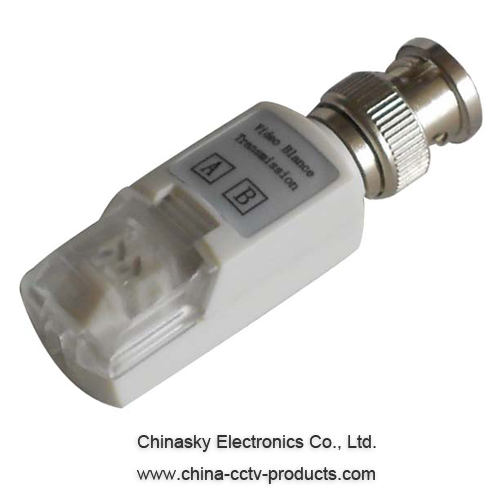

Single Channel Passive Video Balun VB108E
1. Channel:1 CH
2. Impedance:
Coax, Male BNC: 75 ohms
RJ45/Terminal Block: 100 ohms
3. Medium:cat5 cable
4. Transmission Distance: 330m
5. Compatible: NTSC, PAL, and SECAM
6. Frequency Response: DC to 5MHz
7. Certification: CE, RoHS
Description:
The toolless video balun VB108 is a passive transmission device that transmit video signal over unshielded twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP. It’s easy to install and cost effective, and does not require power.
The extremely compact size allows the VB108 to fit anywhere that a BNC can fit. It is ideal for mounting directly on virtually all high-density DVRs without any additional cabling. Its crosstalk and noise immunity ensure quality video signals.
Features:
Technical specifications:
|
Video Format |
NTSC, PAL, and SECAM |
|
|
Frequency Response |
DC to 5MHz |
|
|
Attenuation |
0.5dB typ |
|
|
CMRR |
60 dB |
|
|
Impedance |
Coax, Male BNC |
75 ohms |
|
Terminal Block |
100 ohms |
|
|
Working environment |
Working Temperature |
-10℃ to +50℃ |
|
Storage Temperature |
-30℃ to +70℃ |
|
|
Humidity |
0 to 95% |
|
|
Wire Type |
UTP5 |
|
|
UTP Connection |
No need to strip the wires |
|
|
Power |
No power required |
|
|
Case |
ABS Plastic |
|
|
Dimension |
57mm*17mm*14mm |
|
|
Weight |
40g/pair |
|
