Description:

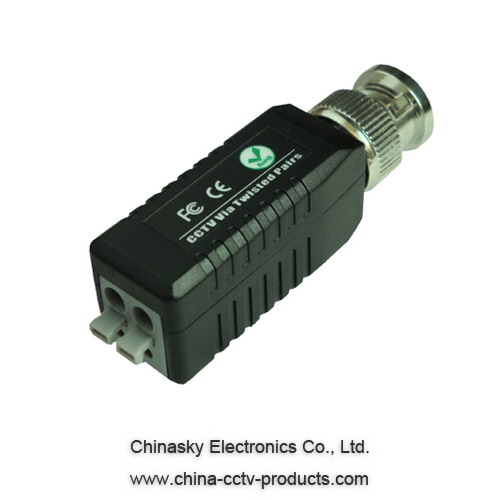

The screwless video balun VB102E is a passive transmission device that transmits video signal over unshielded twisted pair wires,point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP. It’s easy to install and cost effective, and does not require power.
The extremely compact size allows the VB102E to fit anywhere that a BNC can fit. It is ideal for mounting directly on virtually all high-density DVRs without any additional cabling. Its crosstalk and noise immunity ensure quality video signals.
Features:
Full-motion CCTV video at distances up to 330m When used with any passive transceiver
Up to 1500m with any active UTP video receiver
Outstanding interference rejection, transient protection
High quality image
"Press-Fit" terminal block. Screwless terminal block design
It can work as video transmitter or video receiver
Compact size and easy installation
Technical specifications:
|
Video Format |
NTSC, PAL, and SECAM |
|
|
Frequency Response |
DC to 5MHz |
|
|
Attenuation |
0.5dB typ |
|
|
CMRR |
60 dB |
|
|
Impedance |
Coax, Male BNC |
75 ohms |
|
Terminal Block |
100 ohms |
|
|
Working environment |
Working Temperature |
-10℃ to +50℃ |
|
Storage Temperature |
-30℃ to +70℃ |
|
|
Humidity |
0 to 95% |
|
|
Wire Type |
UTP5 |
|
|
UTP Connection |
"Press-Fit" terminal blocks |
|
|
Power |
No power required |
|
|
Case |
ABS Plastic |
|
|
Dimension |
39mm*16mm*19mm(excluding connectors) |
|
|
Weight |
58g/pair |
|
