Home > POE Switches > Active POE Switches > CCTV 8 Port 10/100Mbps PoE Network Switch with 1RJ45 Uplink (POE0810S)

CCTV 8 Port 10/100Mbps PoE Network Switch with 1RJ45 Uplink (POE0810S)

Product Name: CCTV 8 Port 10/100Mbps PoE Network Switch with 1RJ45 Uplink (POE0810S)
Weight: 1.2 Kg
Model NO.: POE0810S
Origin: China
Packing: Paper Box
Brand Name: Chinasky

Product Details: CCTV 8 Port 10/100Mbps PoE Network Switch with 1RJ45 Uplink (POE0810S)

8 Port 10/100Mbps PoE Network Switch with 1RJ45 Uplink (POE0810S)

Product Overview:

Place of Origin:	China	Brand Name:	Chinasky
Model Number:	POE0810S	Packaging Details:	Paper packing
Minimum Order Quantity:	Negotiable	Delivery Time:	5-12 working days
Minimum Order Quantity:	Negotiable	Certification:	CE-LVD, CE-EMC, RoHS
Payment Terms:	T/T, L/C, PayPal, Western Union, Money Gram, Cash

Product Description:

Features:

8FE+1FE

Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.

Comply to POE IEEE 802.3af/at standard, all ports standard testing.

Support POE IPC camera, POE WIFI AP, and POE IPPHONE.

Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.

Auto MDI/MDIX

Upstream port lightning protection.

MAX 30W, MAX power 65W

Store-and-forward

All ports support wire speed switch, jumbo frame transmission.

Zero QFD, self-adaption

Panel lights can monitor operative mode and malfunction analysis.

Over-voltage and under-voltage protection (Some other manufacturers' products don't support this).

Technical specifications:

Model	POE0810S
Product description	9 port Enhanced fast type Ethernet switch
POE Function	Compatible with IEEE 802.3af/AT standards(PD) Single supply port max 30W
Interface	8port 10/100M POE+1 port 10/100M RJ45 (All ports support MDI/MDIX adaptive)
Forwarding mode	Store and forward
Network media	10BASE-TX: And more than 5 types of unshielded twisted pair(≤150m) 100BASE-TX: And more than 5 types of unshielded twisted pair(≤150m)
Performance specification	Bandwidth: 1.8Gbps (Non blocking) network delay(10 to 100M bps): The maximum delay of less than 20 microseconds; MAC: 2KB
Network protocols standards	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control, IEEE 802.1af /at DTE Power via MDI
LEDs indicator	Each port connection status, the working state of PoE system of the power indicator light
Power support	PoE MAX power: total 65 W(port1-port8)AC110~265V
Package size	300mm175mm100mm(LWH)
Physical specifications	225mm105mm32mm(LWH)
Environmental Standard	Working temperature: -10°-55°C Storage temperature: -20°-75°C Working humidity: 10%-90%, No condensation Storage humidity: 10%-95%, No condensation Working height: Altitude 3000 M Altitude(10,000ft) Storage height: 3000M Altitude(10,000ft)
Weight	1.1kg(+power)
Warranty	1 years

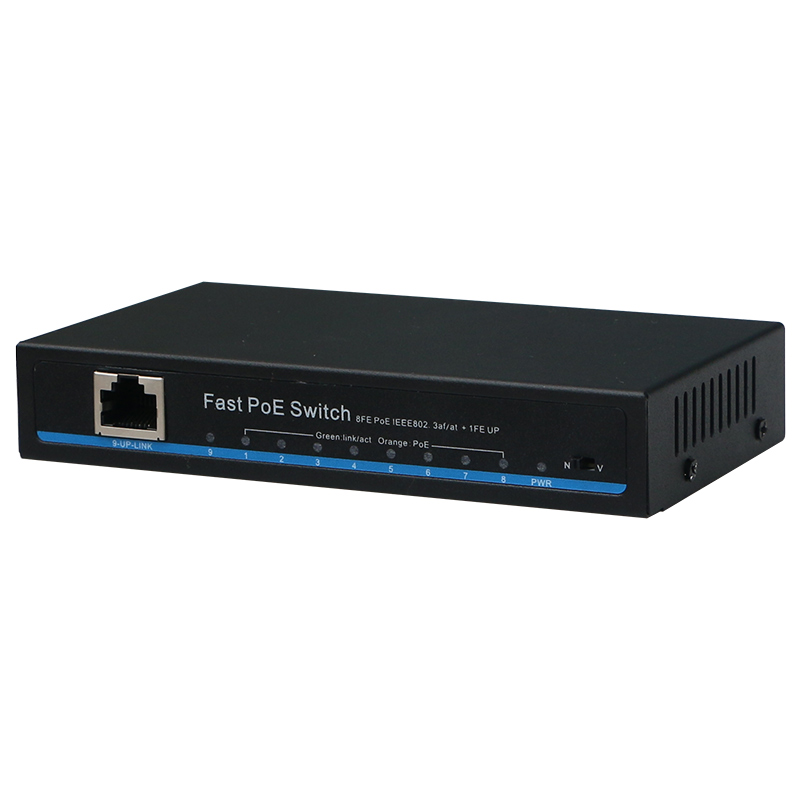

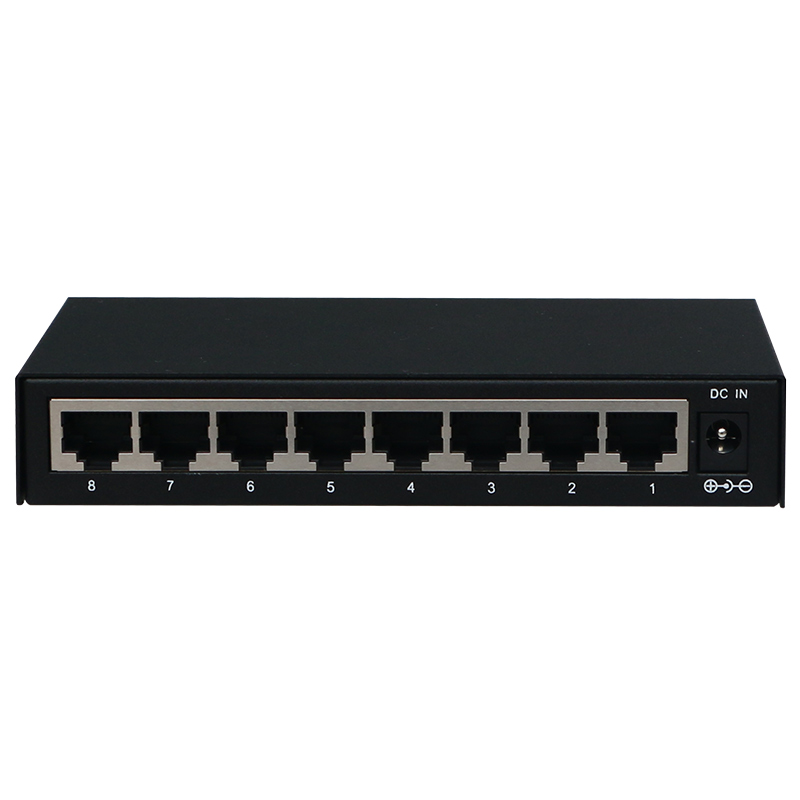

Product Pictures
