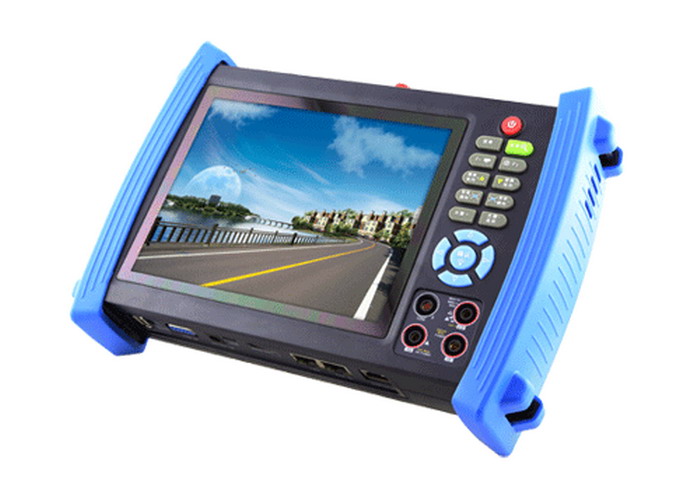

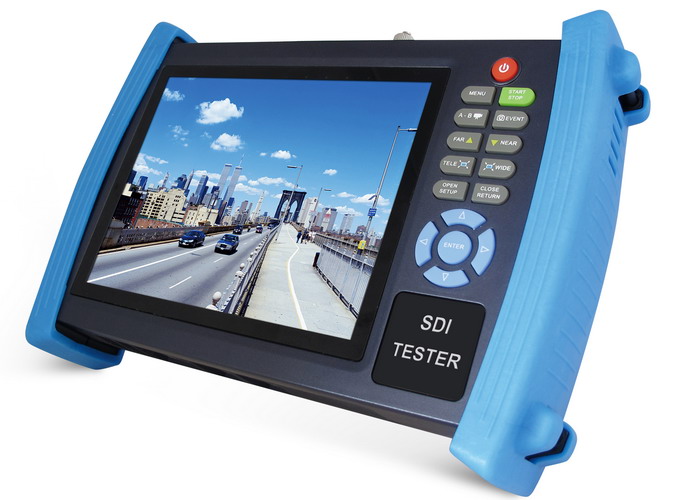

7 inch HD SDI CCTV Tester with IP address search

7 inch HD SDI CCTV Tester with IP address search

Description:

The new CCTV tester with 7-inch HD display.Add VGA, HDMI input function.can shows DVR / NVR image information,It is developed for the On-Site installation and maintenance of IP camera.analog camera and network device, with Video display ,PTZ control, DC12V /2Aoutput power ,Audio test, Color generator, RS 485 Data searching and Cable testing, which are the same to the previous models. The new developed functions include POE power supply testing, PING testing, IP address scan, Video screen shot , Video record, Image magnification , Port flicker, Cable search , LED lamp etc. The new tester also has built in TDR cable testing, which is specialized designed for BNC cable testing in the security monitoring system. This function can accurately measure BNC cable and network cable’s break point and short-circuit location. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field.

Applications:

—Find out the other end of the cable in security maintenance and network engineering

—CCTV system installation and maintenance

—Dome camera and All in one camera testing
—The CCTV transmitting channel testing
—PTZ controller

Features:

•     7inch HD LCD screen display , 800(RGB)x600
• HD SDI digital camera image display and output  (optional)*
• VGA, HDMI signal input display, convenient to DVR / NVR setting
• DC12V 2A power output for camera
• USB 5V 2A power out for phone
•     LED Lamp.easy to operate at night
•     Micro SD card moveable
•     User-defined shortcut keys(F1 and F2)
•     LCD screen brightness/contrast/color Saturation adjustable
•     Automatically adapts and displays the video format of NTSC/PAL

• Optical Power Meter, it can measure the optical power value* (optional function)

•     Digital multimeter, It is used for the voltage current, Resistance, Diode, Capacitance measurement, *.
•     10xzoom,video image can be magnified to view the details, easy to use
•     Video record and playback ,Snapshot and save the current image as JPG file in the SD card

• PING testing.test IP camera or other network devices’ ethernet port whether work normally, and the IP address whether right
• PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement *.
• Cable scan, Send the specific signal, easy to find the connected cable.*
• IP address scan, quickly search the IP address for the connected IP camera and other network devices
• POE voltage measurement.test the PoE switch’s voltage to IP cameras, wireless AP device and other PD devices
• Device Port flicker.easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency.
• Link monitor; check the setting IP address whether occupied.
• TDR cable tester ( BNC cable, network cable etc) * (Optional)
• PTZ address scan, search up the ID of PTZ camera.
• Network cable and Telephone cable testing, display the sequence of connection and the NO

   of the LAN cable

• Support RS232/RS485/RS422.Rate 600 - 115200bps adjustable
• Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D,

   SAMSUNG

• PTZ protocol analysis, control protocol command displays to check RS485 transmission

   whether is normal, easy to find the fault device

• PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and

   sets and the preset position

• Audio input test, test the audio signal from pickup devices
• Visual fault locator , to test fiber’s bending and breakage * (optional function)
• Lithium Ion Polymer Battery .The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 17 hours for normal use after charging for 7 -8 hours

      Note: With "* " sign means function optional

2.3 Function

2.3.1 Video signal testing

IP camera tester ,built-in 7 inch HD LCD screen display , resolution 800(RGB)x600

Full-view display screen, easy and directly displays the camera image quality

Support PAL/NTSC LCD screen brightness/Contrast/Color Saturation adjustable. It is suitable for field construction and maintenance working.

2.3.2 HD SDI camera image display and output (*optional)

7 inch LCD 800*600 HD image display .clearly display HD SDI HD camera, support 1080P HD camera(25frames,30 frames),720P(50 frames),with Larger-screen image display, and easy to install camera.

2.3.3 VGA.HDMI input

VGA and HDMI signal input, as a monitor and television, to receive DVR/NVR output signal, help engineer debug and set DVR./NVR.

2.3.4 Video signal level test

Test video signal strength attenuation, longer video signal cable will cause the image to be dim, and reduce the image dynamic range, video signal is too strong, it will cause the virtual shadow, and reduce the sharpness of the image.

It also can real-display the video level value, if out of range, notices will be display in the screen.

2.3.5 PTZ controller

Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position.

2.3.6 Enhanced Color bar generator

Video Generating, the PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful imagines). By receiving the video color bar to test the video channel whether transmit normally. And judge whether the color is different, because of the transmission loss or interference, it suitable for Video transmission of the field tests, such as optical video transmitter and receiver, video cable etc.

The new function color bar can test the image whether shift.

The color bar (red, green, blue, white, black) test the monitor whether have white or black dot etc.

2.3.7 DC12V 2A output power

Power the camera with DC12V (2A) power output from the tester. It is helpful for demo and testing when the power supply is not available.

2.3.8 Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

2.3.9 Cable tester

Test LAN cable or telephone cable.

Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as the serial number of the cable tester kit.

2.3.10 PTZ controller

Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232 interface, test the PTZ control command data whether received anomaly and RS485/RS232 data transmission.

Screen displays 16 hexadecimal codes such as

PELCO-P:A0 00(Add) xx xxxxxx AF xx

PELCO-D:FF 01(Add)xx xxxxxxxx

2.3.11 PTZ address scanning

Search up the ID of PTZ camera. Help the engineer search the speed dome address quickly.

2.3.12 Image magnification(10xZoom)

Set image 10x zoom, can view and display the details by 1x.2x.3x.4x.5x.6x - 10X zoom in the monitor and tester.

2.3.13 Video snapshot

Capture the video image and save the current video frames as JPEG file

2.3.14 Video record

Record and save the current video in the SD card

2.3.15 Video playback

Video image and record files are saved in the SD card. Storage file directory can be created according to the date

2.3.16 Cable scan (optional function refer to the last page)

Send the specific signal, easy to find the connected cable.

2.3.17 Port flicker

The tester will send special signals to make the connected POE port flicker at special frequency, which will enable the installers to easily and quickly find the connected ethernet cable. This function can prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network connection.

2.3.18 IP address scan

In digital IP surveillance applications, if IP camera’s IP address is not clear or forgotten; the device cannot be used .IP address scan can quickly search the connected IP camera or other network device’s IP address.

2.3.19 Link monitor

To add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied.

2.3.20 PING test

PING is the most conventional network debugging tools; It is used for testing if the connected IP camera or other network equipment’s ethernet port is working normally and the IP address is correct.

2.3.21 POE tester

It can test the PoE voltage when the POE switch is supplying the POE power to IP camera. It can clearly display the power+ and power- on the ethernet cable pins, each cable pin’s voltage and the failure connection of cable pin series numbers.

2.3.22 Digital multimeter (optional function refer to the last page)

CCTV Tester built in highly stable and reliable 33/4 digit (6600) digital multimeter. It is used for the DC and AC voltage measurement , AC and DC current measurement , Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range switching, relative value measurement and locking . It is easy operation and professionally accurate.

2.3.23 Visual fault locator (optional function refer to the last page)

Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, and Continuous light-emitting and 1HZ, 2Hz modulating light output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.

2.3.24 Optical Power Meter (optional function refer to the last page)

The New tester adopts the most advanced handheld instrument specific integrated chip , achieve ultra-low power operation, with the 7 inch LCD High-definition screen display .five wavelength calibration points 1625nm.1550nm . 1490nm . 1310nm . 1300nm . 850nm.Linear or nonlinear optical power display, it can measure the optical power value, and also be used for Relative measurement of optical fiber link loss. It is necessary tool for fibre-optic communication, cable television system and security system maintenance.

2.3.25 LED lamp

It is useful for the Engineer to install and maintain security system at night. LED On/Off pressing button, easy operation.

2.3.26 F1.F2 User-defined shortcut keys

The user-defined shortcut key is designed for improving the efficiency for the engineer, anytime press, easy to operate.

2.3.27 Video level meter (optional)*

PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement

Use hardware high-frequency sampling and processing technology, test the Peak video signal, SYNC signal level, COLOR BURST chroma level more accurate.

PEAK video signal level: Measuring peak video signal, the video signal level is 1000±175mV in PAL  format (NTSC format :140±15IRE ), the level is too low will cause the image to dim, reducing dynamic range; Level is too high will lead to virtual shadow, reducing the definition of the image

The SYNC signal level: measuring the amplitude of the video sync pulse, for determining the video level is correct and that the coaxial cable connectivity. Sync level range is 300 ± 35mV in PAL format(NTSC format: 40 ± 5IRE ), the level is too low will cause the image to fracture or scroll; Level is too high will reduce the image color levels and dynamic range.

COLOR BURST chroma level: Measuring camera color burst level, to determine whether the coaxial cable transmission for the best detail and color. Chroma standard level is 280mV in PAL format and is 40 IRE in NTSC format. Chroma level is low,Chroma level is low, the color will become dark, color level is too low,  the details of monitor reception image will be lost  and even become black and white;

 chroma level is too high, the image will be displayed spot , affect the  image  detail and clarity.

Coaxial cable is too long will reduce the chroma level.

2.3.28 TDR break-point and short-circuit measurement

New function: TDR cable testing, accurately measure BNC cable, network cable, control cable break-point (cable length) and short-circuits location. It improves working efficiency.

2.3.29 USB 5V 2A power out (power bank)

Standard USB output interface, applies to most USB data cable, current 2 A output, Can charge for mobile phones and other digital devices anytime or standby power .

Technical specifications:
