4CH Connectable 8MP CCTV UTP Video Balun for HD-AHD/CVI/TVI (VB704H)
Description:

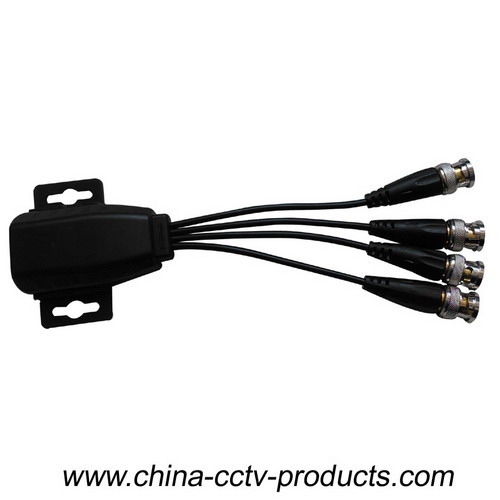

The Multiple Passive CCTV UTP Video Balun VB704AH is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire. It can simplify the wiring project and save wire use quantity.
Compatible with all HD-CVI/TVI/AHD Cameras and analog cameras
Innovative connectable design, a substitution of 8ch, 16ch, 32ch passive video balun
Transmission Distance
|
CVBS |
Color video max up to 400m |
|
HD-AHD |
720P: Color video max up to 350m |
|
1080P,4MP,5MP,8MP: Color video max up to 200m |
|
|
HD-TVI |
720P,1080P: Color video max up to 250m |
|
4MP,5MP,8MP: Color video max up to 200m |
|
|
HD-CVI |
720P: Color video max up to 400m |
|
1080P: Color video max up to 250m |
|
|
4MP,5MP,8MP: Color video max up to 200m |
Technical specifications:
| 4CH CCTV UTP Video Balun for HD-AHD/CVI/TVI (VB704AH) | ||
| Video Format | HD-CVI/TVI/AHD, NTSC, PAL, and SECAM | |
| Frequency Response | DC to 60MHz | |
| Attenuation | 0.5dB typ | |
| CMRR | 60 dB | |
| Surge protection | 4KV | |
| ESD | 8KV | |
| Impedance | Coax, Male BNC | 75 ohms |
| Terminal Block | 100 ohms | |
| Working environment | Working Temperature | -10ºC to +50ºC |
| Storage Temperature | -30ºC to +70ºC | |
| Humidity | 0 to 95% | |
| Wire Type | UTP5 | |
| UTP Connection | Female BNC, RJ45 | |
| Power | No power required | |
| Case | ABS plastic | |
| Dimension | 75mm*50mm*25mm | |
| Weight | 135g/pc | |
Connection method:
Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure),connect the clamped modular plugs to the RJ45 sockets,connect the coax to the connection terminal.
